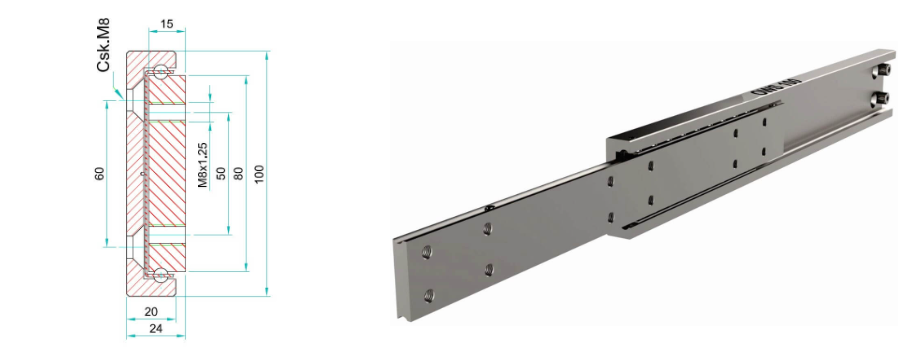

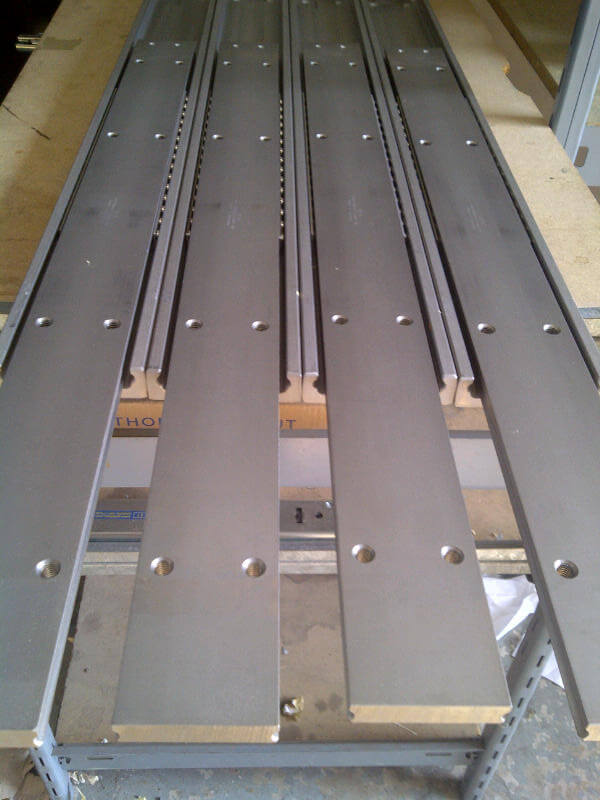

4015.OWS100 (670-1750kg)

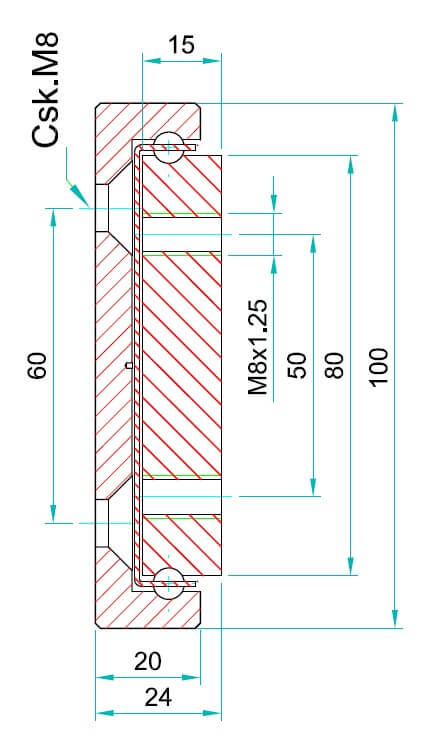

| 安裝間隙: | 24mm |
| 高度: | 100mm |
| 閉合長度: | 300-2000mm |
| 延展長度: | 150-1000mm |
| 最大載重: | 670-1750 kg/pair |
| 滑軌節數: | 2 |
| 延展程度: | Partial |
| 材質: | C45 steel |
| 抗震動性: | 9 |

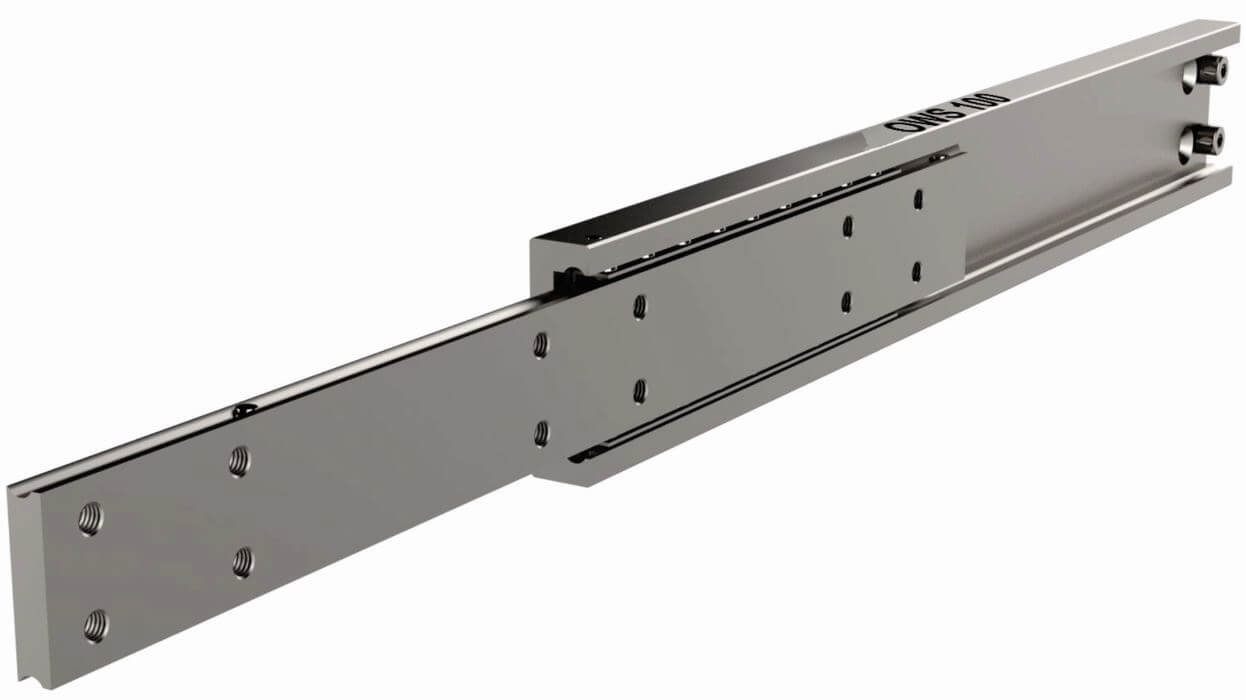

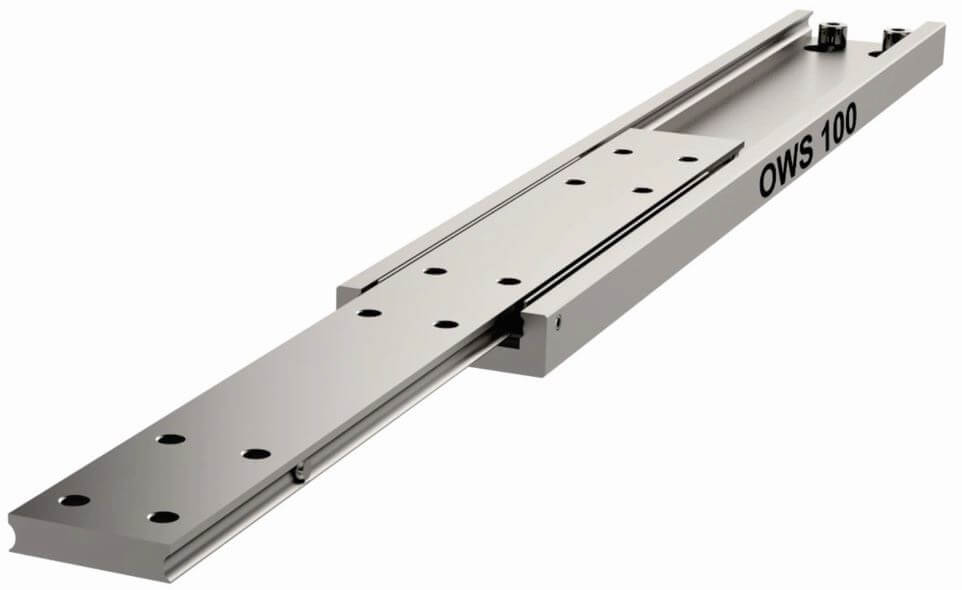

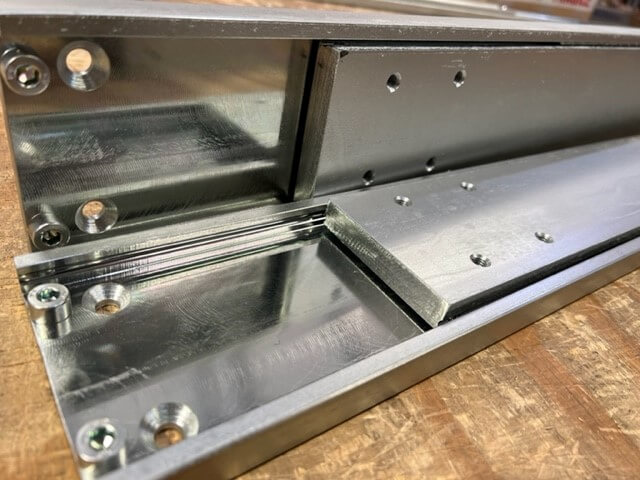

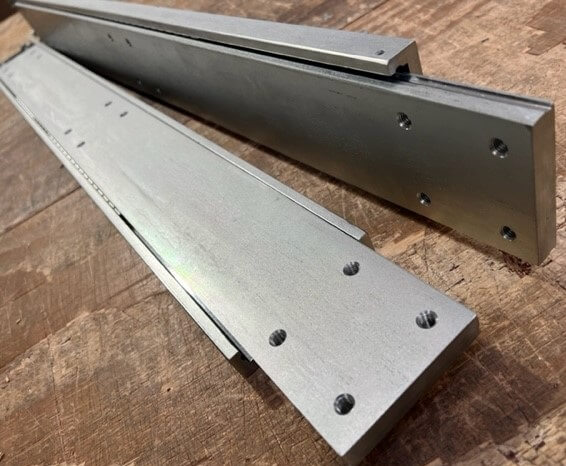

OWS-100是一款強壯的部分延展導軌, 被設計于在限縮空間中發揮最大負載。特別適合使用于伸縮作業平臺和武器搬運設備, 同時也可以套用在會出現扭力的應用。
本款導軌行程50%, 載重能力670-1750kg/對, 導軌在550mm長可以延展275mm, 載重達到1670kg。由兩節冷抽鋼制成, 珠軌經過精密加工，OWS-100導軌在閉合靜置的情況下有相當好的抗震抗沖擊性能，因此適合安裝于車載環境應用。導軌在展開時也能夠提供強大的剛性，使其成為支撐動態負載應用和手動抽拉裝置的絕佳選擇。
OWS-100導軌也可以安裝在短軸上使用(平躺), 但負載能力將會下降60~80%。行程也可以在載重能力些許下降的情況下客制至最高70%。請與我們聯系以選擇此不加價服務。
本款導軌由符合EN 10277的冷抽鋼C45E+C制成。珠槽采用雷射切割的鍍鋅板，鋼珠為符合DIN 5401的C85 G100規格。單支導軌每公尺重16.76kg。
導軌為單支報價及出售。負載能力數值則為成對計算(一對兩支導軌)。OWS-100型號導軌為接單生產，請容許3-4周生產時間，或與我們訂定庫存計劃。
產品編號 | 閉合長度 (mm) | 延展長度 (mm) | 最大載重 (kg) |
|---|---|---|---|
| 4015.OWS100.0300 | 300mm | 150mm | 1410kg |
| 4015.OWS100.0350 | 350mm | 175mm | 1450kg |
| 4015.OWS100.0400 | 400mm | 200mm | 1510kg |
| 4015.OWS100.0450 | 450mm | 225mm | 1570kg |
| 4015.OWS100.0500 | 500mm | 250mm | 1630kg |
| 4015.OWS100.0550 | 550mm | 275mm | 1670kg |
| 4015.OWS100.0600 | 600mm | 300mm | 1700kg |
| 4015.OWS100.0650 | 650mm | 325mm | 1730kg |
| 4015.OWS100.0700 | 700mm | 350mm | 1750kg |
| 4015.OWS100.0750 | 750mm | 375mm | 1690kg |
| 4015.OWS100.0800 | 800mm | 400mm | 1630kg |
| 4015.OWS100.0850 | 850mm | 425mm | 1550kg |
| 4015.OWS100.0900 | 900mm | 450mm | 1480kg |
| 4015.OWS100.0950 | 950mm | 475mm | 1420kg |
| 4015.OWS100.1000 | 1000mm | 500mm | 1360kg |
| 4015.OWS100.1050 | 1050mm | 525mm | 1320kg |
| 4015.OWS100.1100 | 1100mm | 550mm | 1260kg |
| 4015.OWS100.1150 | 1150mm | 575mm | 1200kg |
| 4015.OWS100.1200 | 1200mm | 600mm | 1150kg |
| 4015.OWS100.1250 | 1250mm | 625mm | 1100kg |
| 4015.OWS100.1300 | 1300mm | 650mm | 1070kg |
| 4015.OWS100.1350 | 1350mm | 675mm | 1050kg |
| 4015.OWS100.1400 | 1400mm | 700mm | 1030kg |
| 4015.OWS100.1450 | 1450mm | 725mm | 1010kg |
| 4015.OWS100.1500 | 1500mm | 750mm | 980kg |
| 4015.OWS100.1550 | 1550mm | 775mm | 950kg |
| 4015.OWS100.1600 | 1600mm | 800mm | 920kg |
| 4015.OWS100.1650 | 1650mm | 825mm | 880kg |
| 4015.OWS100.1700 | 1700mm | 850mm | 840kg |
| 4015.OWS100.1750 | 1750mm | 875mm | 810kg |
| 4015.OWS100.1800 | 1800mm | 900mm | 780kg |
| 4015.OWS100.1850 | 1850mm | 925mm | 750kg |
| 4015.OWS100.1900 | 1900mm | 950mm | 720kg |
| 4015.OWS100.1950 | 1950mm | 975mm | 700kg |
| 4015.OWS100.2000 | 2000mm | 1000mm | 670kg |
