4070.SYST - Slide & Tilt
| 安裝間隙: | 45mm |
| 高度: | 150mm |
| 閉合長度: | 400-2000mm |
| 延展長度: | 190-1790mm |
| 最大載重: | 90 kg/pair |
| 滑軌節數: | 2 |
| 延展程度: | Partial |
| 材質: | Aluminium & GRP |
| 抗震動性: | 9 |

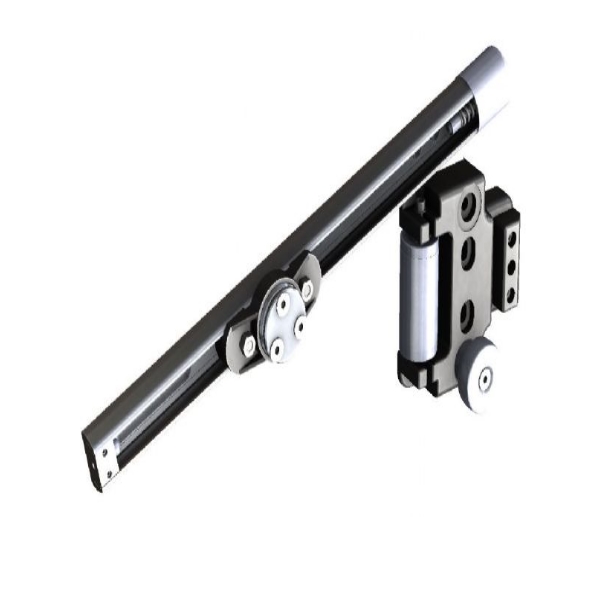

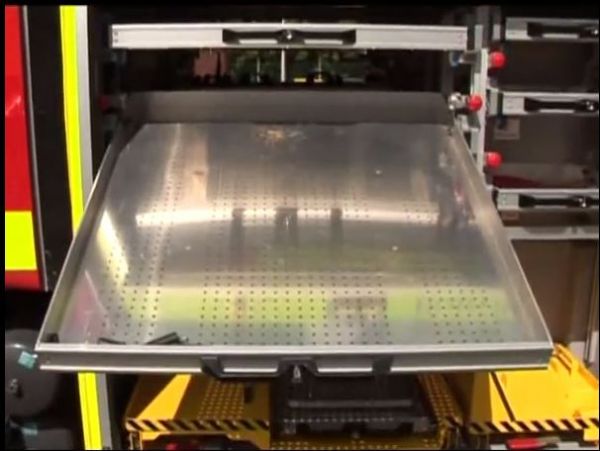

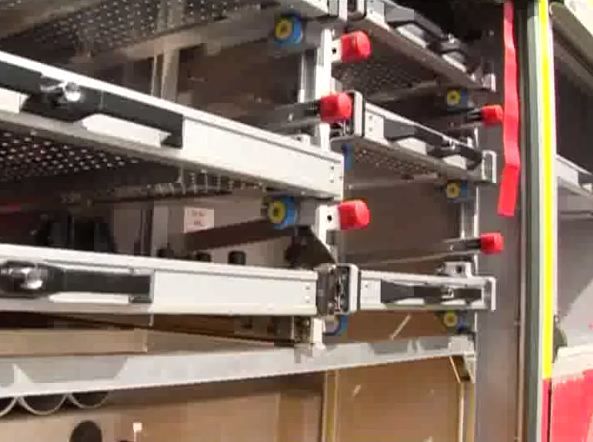

Slide & Tilt是運用了輕巧的鋁合金和高強度的PA66打造而成, 整套抽屜系統能夠使抽屜在抽出后向外傾斜。系統前端的托架配有斜面和崁槽, 讓抽屜在閉合時, 把手鎖系統的鋼桿能滑順收合并卡進凹槽, 牢牢固定住抽屜。

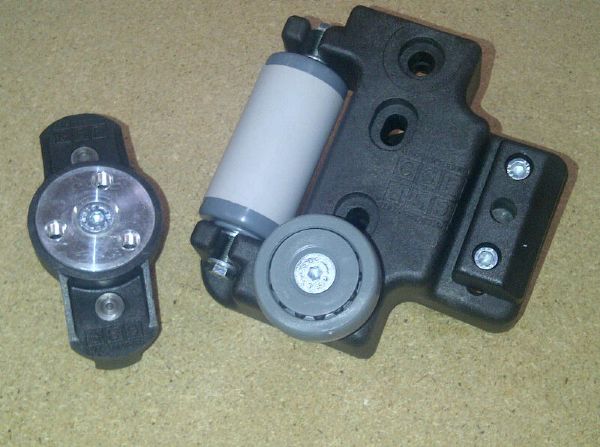

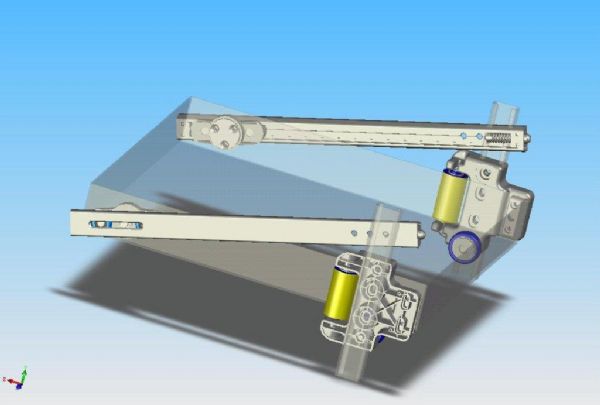

抽屜尾端與滑塊及固定片結合, 兩者結合后在鋁合金軌道內滑移, 軌道外側配有堅固的沖擊緩沖機件。鋁合金軌道能被任意調整到設計者需求的理想角度。
本系統設計賦予抽屜彈性化和模組化。前端托架和固定片為標準零件, 設計只可以根據柜體深度指定軌道長度。
本套系統被設計來承受90kg載重, 考量到健康與安全規章, 我們建議將操作重量維持在35kg。
所有長度皆有建立庫存計畫并可以在48小時內出貨。
產品編號 | 閉合長度 (mm) | 延展長度 (mm) | 最大載重 (kg) |
|---|---|---|---|
| 4070.SYST.0400 | 400mm | 190mm | 90kg |
| 4070.SYST.0450 | 450mm | 240mm | 90kg |
| 4070.SYST.0500 | 500mm | 290mm | 90kg |
| 4070.SYST.0550 | 550mm | 340mm | 90kg |
| 4070.SYST.0600 | 600mm | 390mm | 90kg |
| 4070.SYST.0650 | 650mm | 440mm | 90kg |
| 4070.SYST.0700 | 700mm | 490mm | 75kg |
| 4070.SYST.0750 | 750mm | 540mm | 75kg |
| 4070.SYST.0800 | 800mm | 590mm | 75kg |
| 4070.SYST.0850 | 850mm | 640mm | 75kg |
| 4070.SYST.0900 | 900mm | 690mm | 75kg |
| 4070.SYST.0950 | 950mm | 740mm | 75kg |
| 4070.SYST.1000 | 1000mm | 790mm | 60kg |
| 4070.SYST.1050 | 1050mm | 840mm | 60kg |
| 4070.SYST.1100 | 1100mm | 890mm | 60kg |
| 4070.SYST.1200 | 1200mm | 990mm | 60kg |
| 4070.SYST.1300 | 1300mm | 1090mm | 60kg |
| 4070.SYST.1400 | 1400mm | 1190mm | 60kg |
| 4070.SYST.1500 | 1500mm | 1290mm | 35kg |
| 4070.SYST.1600 | 1600mm | 1390mm | 35kg |
| 4070.SYST.1700 | 1700mm | 1490mm | 35kg |
| 4070.SYST.1800 | 1800mm | 1590mm | 25kg |
| 4070.SYST.1900 | 1900mm | 1690mm | 25kg |
| 4070.SYST.2000 | 2000mm | 1790mm | 25kg |
