供應全球優質的滑動承載延伸系統
4015.SDTSB90 (238-735kg)
| 安裝間隙: | 36mm |
| 高度: | 90mm |
| 閉合長度: | 200-2400mm |
| 延展長度: | 200-2400mm |
| 最大載重: | 238-735 kg/pair |
| 滑軌節數: | 3 |
| 延展程度: | Total |
| 材質: | Stainless Steel 316L |
| 抗震動性: | 8 |

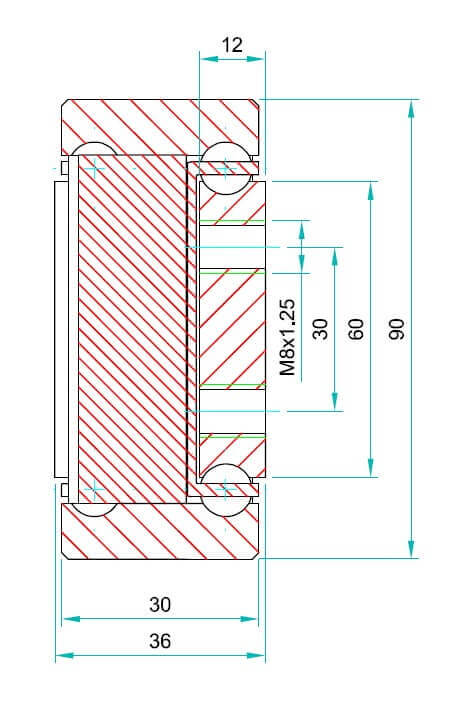

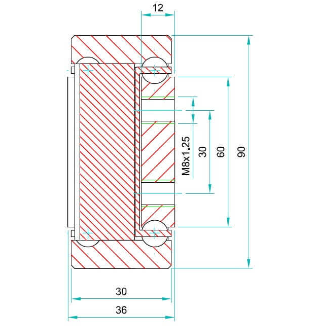

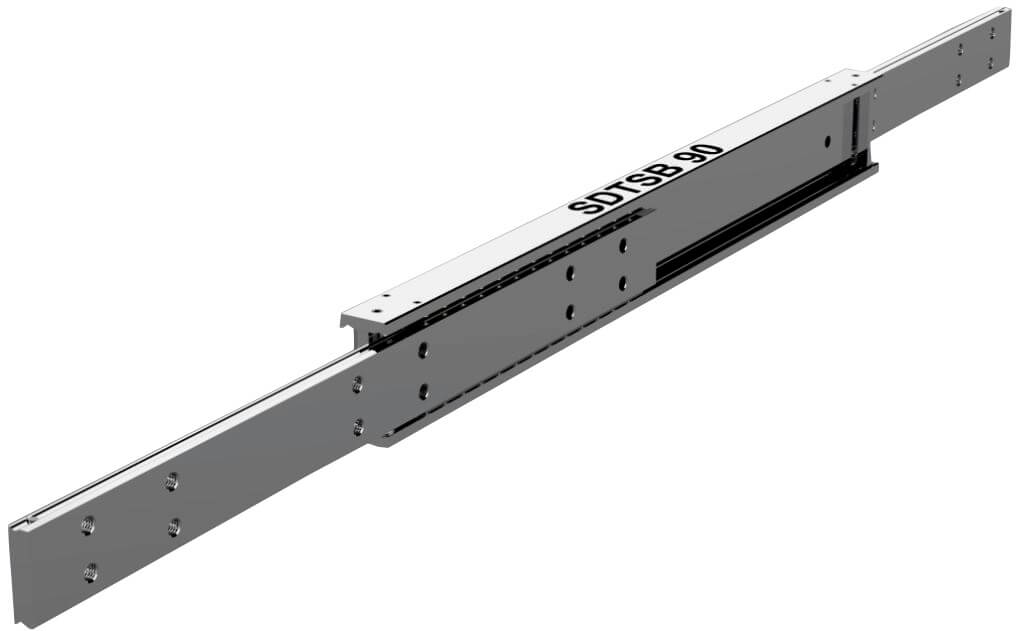

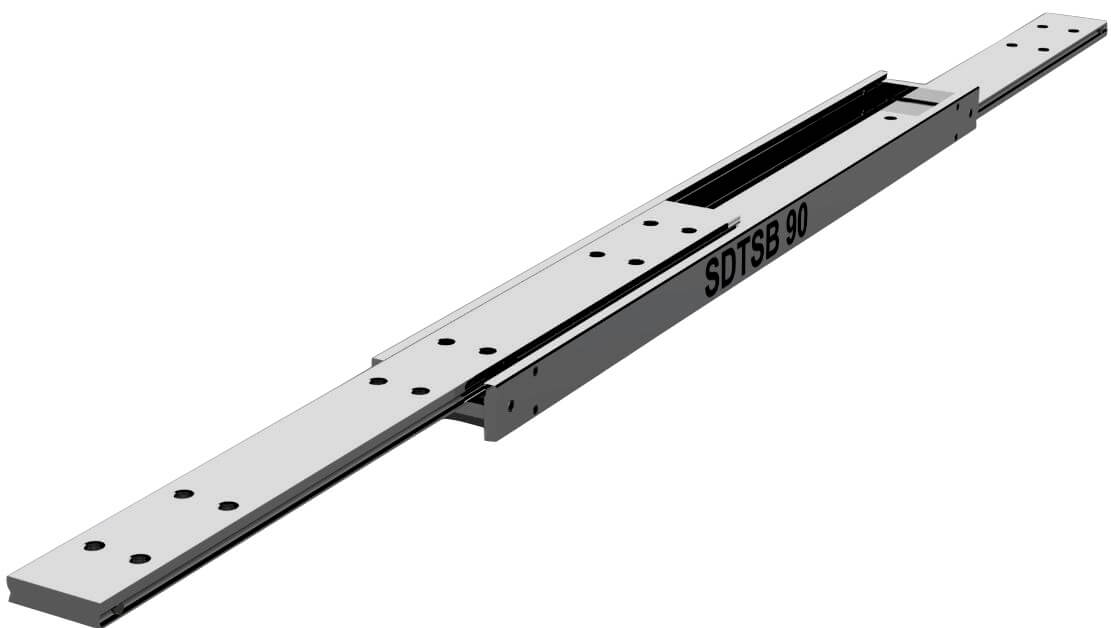

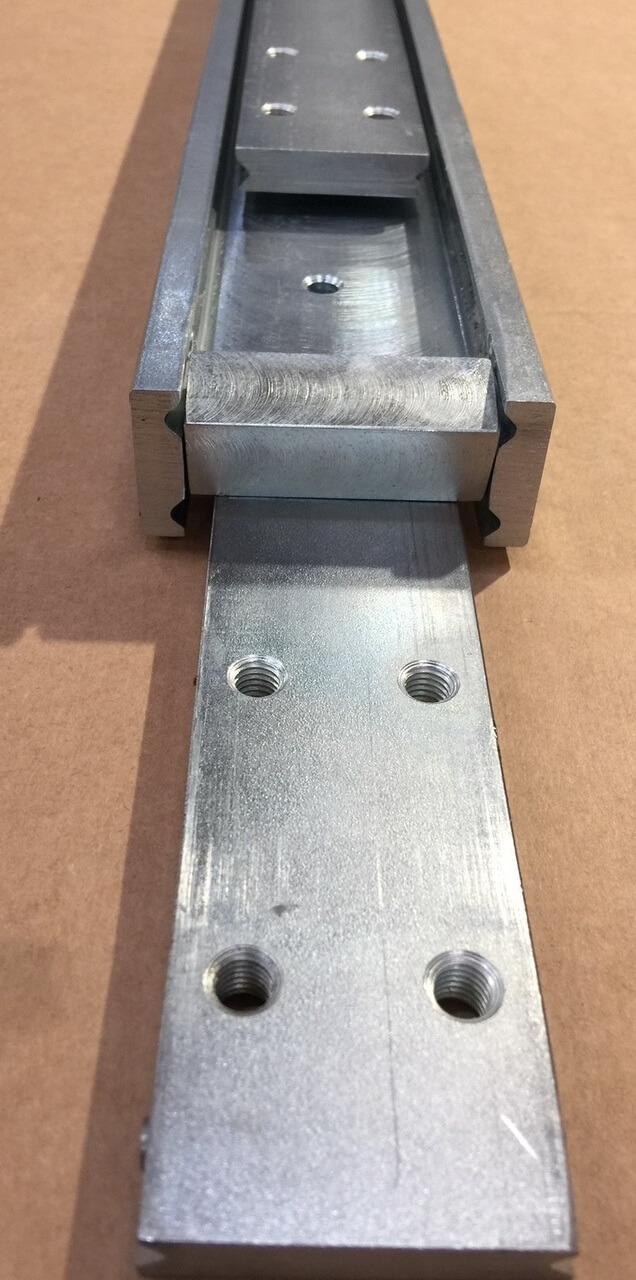

SDTSB-90是一款可向前向后完全延展的堅固伸縮導軌, 設計在導軌本身的特殊擺片機件使得內外軌能夠按順序且流暢的雙向滑移。適合應用于連通車體兩側的抽屜。
本款導軌雙向行程100%, 載重能力238-735kg/對, 導軌在550mm長可以向前向后延展550mm, 載重達到672kg。由三節不銹鋼316L制成, 并裝配珠槽及鋼珠。導軌具備相當好的抗震抗沖擊性能, 因此適合安裝于軍用車輛抽屜、海上收納、火車電池箱。鋼梁、珠槽和鋼珠均采用奧氏體不銹鋼316L (1.4404)制造。螺栓和檔銷則采用奧氏體304 (1.4301)制成，以達到全面性抗腐蝕效果。如有需求，還可以依據更高的訂購數量要求定制全316L產品。

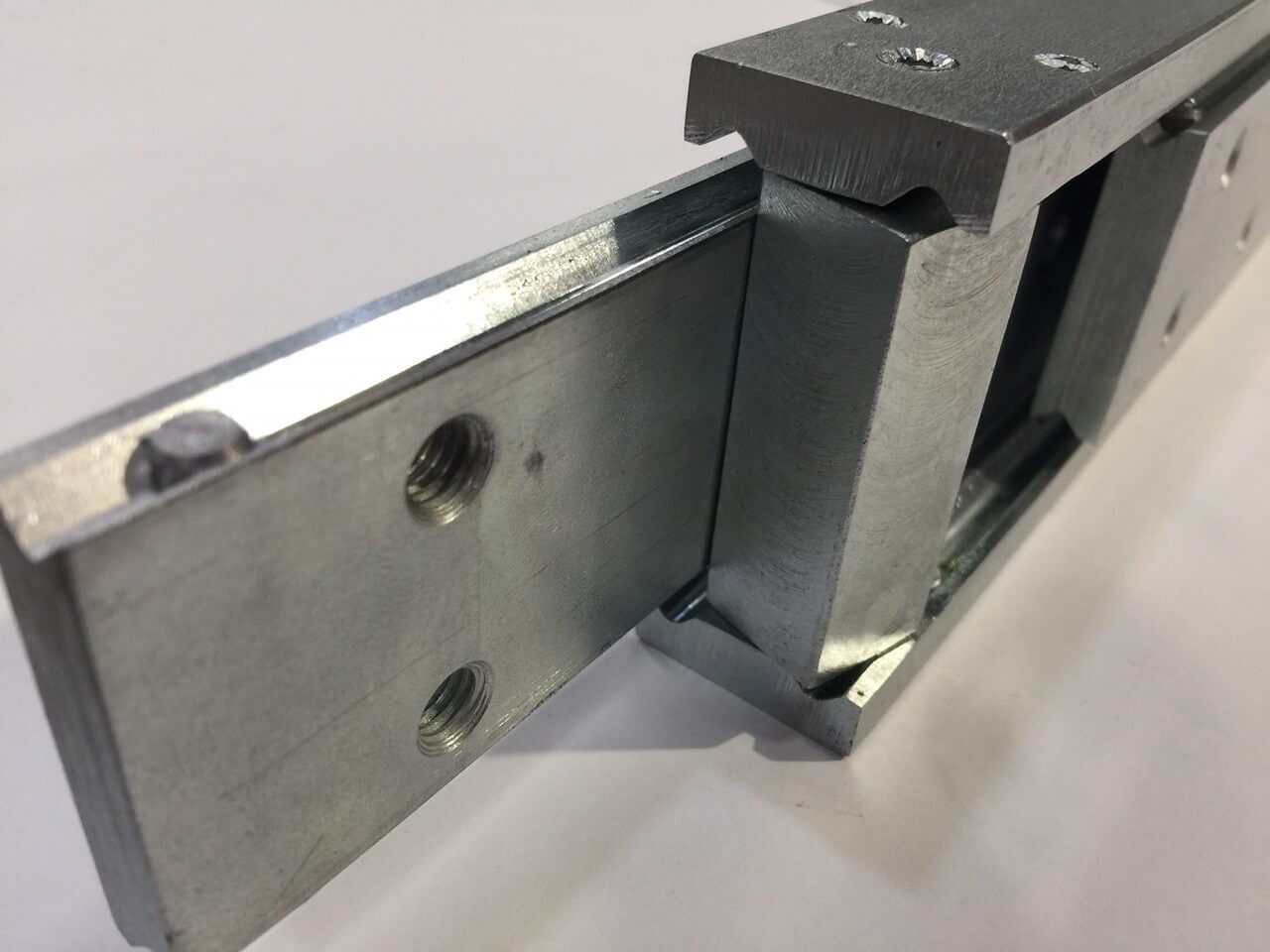

受惠于工字梁結構的高強度, 本款導軌采用在展開時能夠提供強大的剛性, 使其成為動態應用的絕佳選擇。與許多其他由冷軋C型鋼制成的導軌不同。導軌無使用任何塑料部件, 因此適合用于極端溫度環境。316L奧氏體不銹鋼具備極低的電磁特征, 非常適合國防應用。

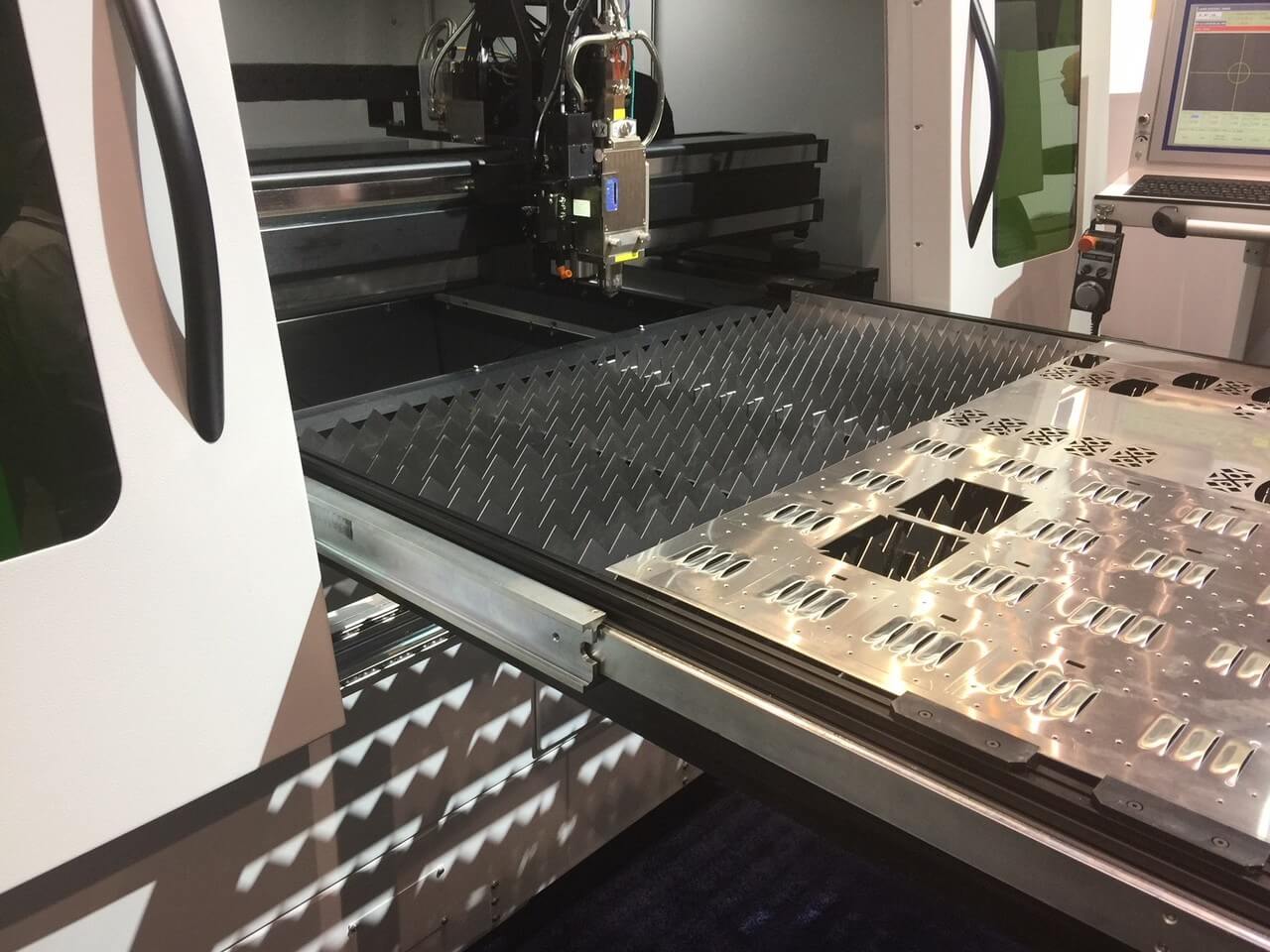

我們不建議將標準品SDTSB導軌應用于機械取放物設備或穿梭車，在進行工廠校調適應和客戶實際應用測試核可前我們無法承諾生產, 此導軌受限于最大運行速度< 0.3m/s。
SDTSB-90導軌也可以安裝在短軸上使用(平躺), 但負載能力將會下降60~80%。單支SDTSB-90導軌每公尺重19.38kg。
請容許6-8周生產時間，或與我們訂定庫存計劃。
